LW300KN Seat Driving Mini Wheel Loader Rated Lifting Capacity 2000 Kg

Moq:	1 unità
prezzo:	US$1000~US$35000
Imballaggio standard:	Packaging di esportazione standard
Periodo di consegna:	3-5 settimane
metodo di pagamento:	D/p, d/a, l/c, t/t
Capacità di approvvigionamento:	100 unità +3 settimane

Informazioni di dettagli

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine

Marca

Certificazione

ISO9001

Numero di modello

XC956

Peso della macchina:

10900 kg

Specifiche:

7245mm* 2482mm* 320mm

Energia:

Capacità del secchio:

1.5-2,5m3

Tipo:

Caricatore di medie dimensioni

Descrizione di prodotto

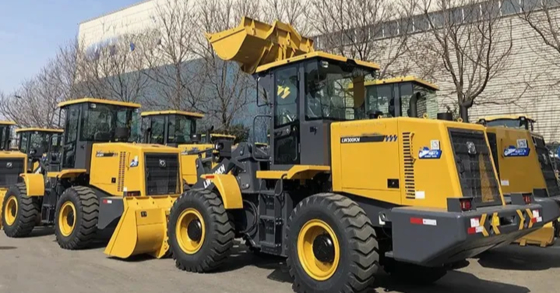

LW300KN Seat Driving Mini Wheel Loader Rated Lifting Capacity 2000 Kg

Basic Information

Model NO.	LW300KN	Certification	CE
Condition	New	Rated Load	1-3t
Transmission	Hydraulic	Load and Unload Mode	Front Discharge
Walking Mode	Wheeled	Type	Medium-sized Loader
Machine Weight	10900 Kg	Power	92kw
Bucket Capacity	1.5-2.5m3	Max. Breakout Force	130kn
Engine Model	Wp6g125e201	Transport Package	Nude Package
Specification	7245mm* 2482mm*320mm	Trademark	China Top 1 Brand
Origin	Xuzhou, Jiangsu, China	HS Code	84295100
Production Capacity	1000 Units/Month

Packaging & Delivery

Package Size	724.50cm * 249.00cm * 32.00cm
Package Gross Weight	10900.000kg

Product Description

As an outstanding representative of the industry's super-heavy-duty models, LW300KN boasts remarkable advantages in terms of "High energy-conservation, efficiency, reliability, and comfort" compared with industry's like products and is extensively applicable for earth- moving projects, aggregate yards, municipal constructions, and other bulk material transports.

Variety attached tools meeting requirements of different working conditions: Log clamp I/ Log clamp IV (offset tooth)/ Toad's mouth clamp/ Paired and Staggered interconvert/ Grasping grass machine/ Pallet fork/ Snowplow.

Advantages and Highlights:
1. The perfect combination between energy-conservation drive system and low speed energy-conservation engine builds the one and only 3t energy-conservation product in the industry, with the economy superior by >10% to the industry's like products.

2. The transmission is applied with the optimal lubrication system design technology to thoroughly improve the industry's difficulties of insufficient and non-uniform transmission lubrications and make the transmission life remarkably leading the industry.

3. With the application of the exclusive high strength single plate beam skeleton structure, the "load-carrying material ratio" is remarkably leading the industry products.

4. The extended wheelbase and the classic 3rd generation loader structure realize higher working capacity, smaller turning radius, and lower wear of rear wheels.

Product Parameters

Description	Unit	LW300KN
Rated operating load	kg	3000
Bucket capacity	m³	1.5~2.5
Machine weight	kg	10900±200
Dump clearance at maximum lift	mm	2770~3260
Reach at maximum lift	mm	1010~1210
Wheel base	mm	2900
Tread	mm	1850
Height of hinge at maximum lift height	mm	3830
Working height(fully lifted)	mm	4870
Max.breakout force	kN	130
Max.horse power	kN	95
Hydraulic cycle time-raise	s	5.4
Total hydraulic cycle time	s	9.3
Min. turning radius over tyres	mm	5170
Articulation angle	°	38±1
Gradeability	°	28
Tyre size		17.5-25-12PR
Overall machine dimension L×W×H	mm	7245×2482×3320
Model		WP6G125E201
Emission standards		Emission 2
Rated Power/Speed	kW/rpm	92/2000
Fuel Tank	L	170
Hydraulic Tank	L	175
